Reference Data: Order-Level ESW Fields [Guide]

Modified on Wed, 8 Jul at 9:04 AM


Onboarding and Configuration	Baseline Account	(Billing) Account	Order-Level Fields
			You are here

This reference lists the carrier-specific Order-Level ESW fields used in techSHIP.

Use it together with the linked Order editing steps: the setup guide covers the shared order-editing flow, while this article defines the confirmed field values, field behavior, and order-level configuration details.

For a complete overview of supported carriers and related setup guides, refer to techSHIP supported Carriers - Master List [Guides List].

Review and complete Reference Data: ESW Client (Billing) Account Fields [Guide] before processing orders with ESW so shipments use the required client billing configuration.

TABLE OF CONTENTS

Editing an Order
Carrier-Specific Options
- Carrier Tab
Next Steps

Editing an Order

Follow the UI Navigation steps in How to Edit an Order [Step-by-Step guide], using the carrier-specific values provided in this guide.

Go to

Essential Configuration	Carrier-Specific This article

Carrier-Specific Options

	Return to

Essential Configuration	Carrier-Specific

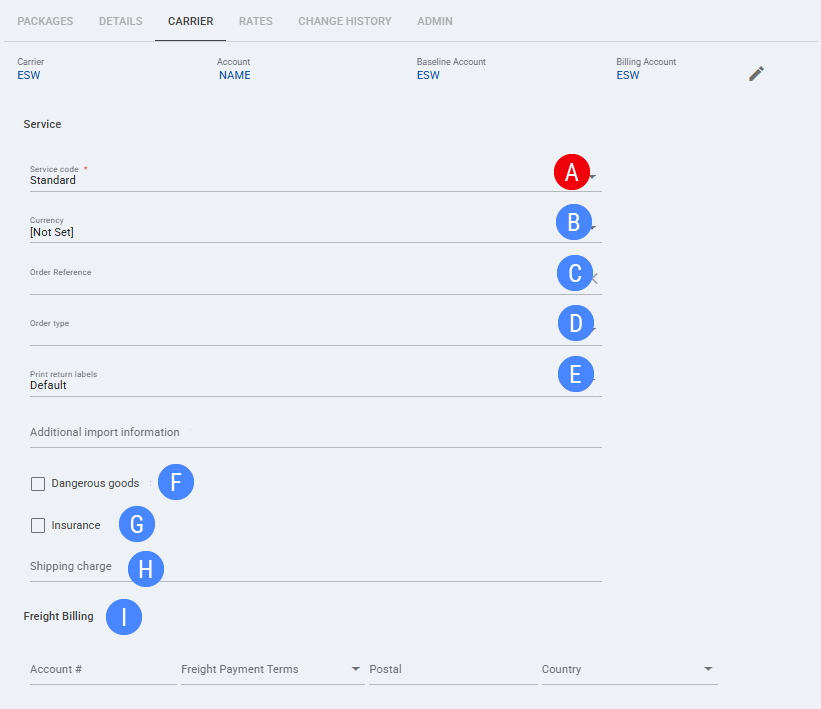

Carrier Tab

The Carrier tab contains the carrier-specific fields available when editing an Order. These fields define confirmed order-level shipment behavior for the selected shipment. Red icons identify required fields, and blue icons identify fields not marked as required.

Service code: Defines the ESW service value used when processing the selected shipment. Select the configured service value, or use [Use Order] when the service should be taken from the order.

Currency: Defines the currency value used for the selected ESW shipment when configured.

Order Reference: Provides the existing ESW order reference used when processing the selected shipment.

Order type: Defines the ESW order type used when processing the selected shipment. When set to [Not Set], the value is omitted from the request and ESW defaults to CHECKOUT. Order-level values override the value configured in the Client (Billing) Account.

Print return labels: Controls whether return documentation is requested for the selected ESW shipment. Confirmed behavior is Default, Enable, and Undefined send true; Disable sends false.

Dangerous goods: Marks the selected ESW shipment as containing dangerous goods when enabled.

Insurance: Marks the selected ESW shipment for insurance handling when enabled.

	Shipping charge: Populates shippingInfo for ESW non-checkout order processing when the selected order uses a non-checkout order type.
	Freight Billing: Defines freight billing details for the selected order when they are required for processing.

Order Reference must contain the existing ESW order reference before processing.

Select Save before continuing so the configured order-level settings are applied.

Next Steps

After the Order is updated and saved, continue processing the shipment with ESW.
